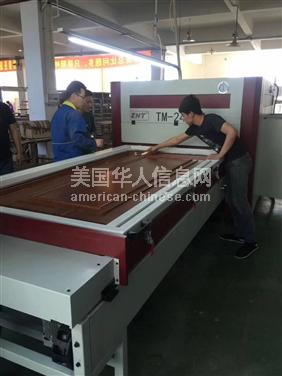

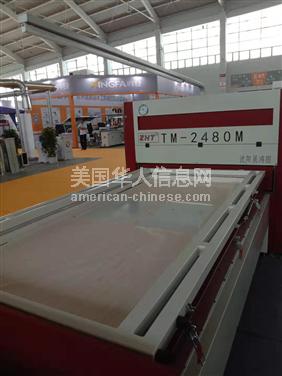

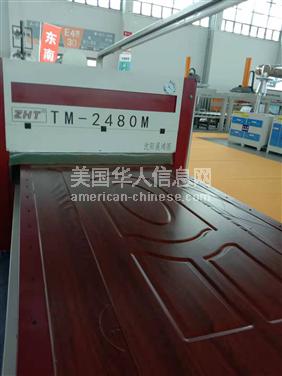

TM2480M vacuum membrane press machine
Feature
1.High speed , working cycle time is less than 1 min.
2.Save the PVC film.
3.PVC film stretch in limited scale,keep color untouched.
4.No wrinkle.
This machine is a fully automatic vacuum coating equipment, which can be used for surface finishing of various kinds of high-grade PVC.
The machine is highly automatic and easy to operate. The work table is fully automatic in and out of the warehouse.The processing time, processing temperature and vacuum in the warehouse are automatically controlled by digital display, thus ensuring product quality and improving production efficiency.
Outline size 9950mm*1900mm*1770mm
Worktable size(the door with glass) 2550mm*1100mm
Worktable size(board door ) 2500mm*1280mm
Weight 2.5T
Total power 15KW
Actual power consumption 5KW
Voltage 380v 50HZ optional
Rated operating pressure Negative pressure ≥-0.095Mpa
Pls contact me
