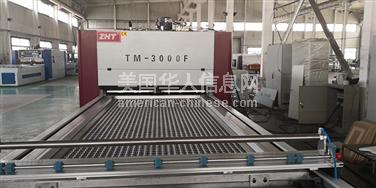

TM3000F-P Upper Pressure Machine with Automatic Pin System
This is a new patented product, which can upgrade the common positive and negative pressure of various brands into pin system.Can save a large part of cost for the majority of users.Very practical.
Features
1.Fast speed:
The working period of both ordinary work-piece and highlight work-piece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.
2.Good effect:
The product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3.Low energy consumption:
The total power of the machine is 35KW, which is one half of that of the peer equipment;The main heating starting power is 21KW, and the average power consumption is 12KW/h.
4.High configuration:
The key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.
5.High working efficiency:
The whole machine adopts automatic top block.The technology can be applied to different manufacturers and different positive and negative pressure devices, which saves the cost of replacing equipment. saves the scanning sequence of the pad of the equipment,greatly improves the working efficiency and reduces the labor cost.
Outline size 12200mm*2150mm*2480mm
Worktable size 3000mm*1270mm
Weight 19T
Total power 35kw
Actual power consumption About 12kw(energy saving more than 2 times)
Maximum processing size 50mm
Voltage 380v 50HZ optional
Rated operating pressure positive ≤0.6Mpa negative ≥-0.095Mpa
