信息标题: Foils press machine ZHT
信息类别: 物品交易→ 工具设备→ 出售
价格: $1元
发布时间: 2019-09-04 09:36:08
点击量: 505
地区: 加利福尼亚(加州)→ 洛杉矶→ 阿罕布拉(Alhambra)
联系人: Cindy lee
联系人电话: 8615840529588
Email: lting1143@gmail.com
详细信息: TM2580F Positive and Negative Press Machine

Features
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.
2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3. Low energy consumption: the total power of the machine is 28KW, which is one half of that of the peer equipment; The main heating starting power is 18KW, and the average power consumption is 10KW/h.
4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.

The equipment uses imported solid core diameter 180mm cylinder to prevent oil leakage.
The frame is made of manganese steel plate and sandblasted to enhance corrosion resistance and load bearing.
The lifting balance system is easy to adjust, and the rise and fall are more stable.
Hydraulic system oil port improvement and maintenance is more convenient.
The aluminum frame is processed by one body, and no weld seam increases the strength.

Outline size 11200mm*2480mm*2150mm
Worktable size 2560mm*1270mm
Weight 14T
Total power 28KW
Actual power consumption about 10KW
Maximum processing size 50mm
Voltage 380v 50HZ optional
Rated operating pressure positive ≤0.6Mpa negative ≥-0.095Mpa

Pls contact me
Cindy Lee
Shenyang Zhanhongtu Machinery & Equipment Co.,Ltd
WhatsApp:+8615840529588
Wechat:15840529588
www.zhtmachinery.com
打电话给我时,请一定说明在是美国华人网看到的,谢谢!

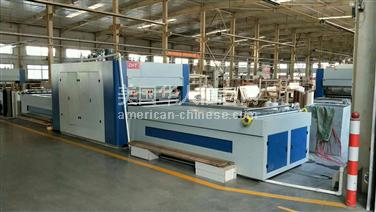

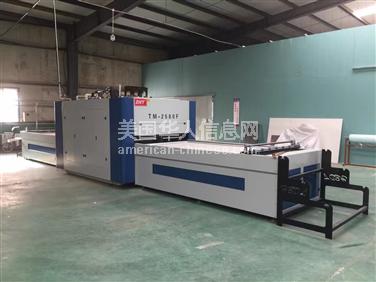

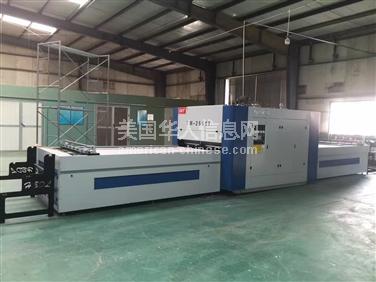

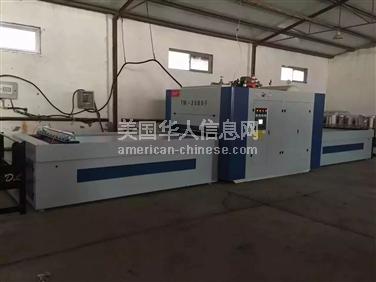

照片: 阿罕布拉Foils press machine ZHT
